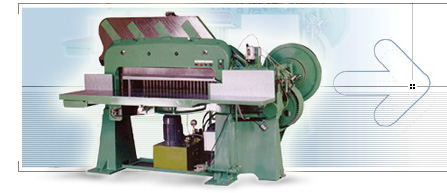

<< CUTTING MACHINE(Operate with foot / Operate with two hands)





 Specification

1.

Machine base is made of high strength casting structure. It runs firmly and cuts precisely.
2.
 Operate with gear wheel.
3.
 The special design of powerful electromagnetic clutch, prevent the second time cutting. (Operate with two hands.)
4.
 Engage method: operate with foot or two hands.
5.
 Chrome platform
6.
 Safety sensor: 1-2 set. (Optional)
7.
 Safety belt for the working platform. (Optional)
8.
 Air delivery device. (Optional)
9.
 Manual lubricant refilling system.
10.
 Can supplemental Computer system. (Optional)





 Spec.--CT - 628



A. Machine Length: 2200mm
B. Machine Height: 1680mm
C. Machine Width: 2390mm
D. Table Height: 855mm
E . Max. Cutting Thickness: 120mm
F . Max. Cutting Width:940mm
G. Front Table Length: 620mm

>> ( Tradition mode )CUTTING MACHINE--Spec.



Model

CT-618

CT-628

CT-648

CT-668



size

22.8 INCH

37.2 INCH

44.4 INCH

54    INCH

E

Max. Cutting Thickness(m/m)

120

120

120

120

D

Table Height(m/m)

855

855

855

855

B

Machine Height(m/m)

1680

1680

1680

1680

F

Max. Cutting Width(m/m)

575

940

1120

1360



Weight(kg)

1200

1500

1700

2000



Main motor(hp)

1

2

2

3



Clamp motor(hp)

1

2

2

2

G

Front Table Length

620

620

620

620
