<< MICRO-COMPUTER HIGH-SPEED CUTTING MACHINE





Specification

1.

Machine base is made of high strength casting structure. It runs firmly and cuts precisely.

2.
Operate with worm wheel shaft. ( Single-piece and forceful worm wheel box )
3.
The special design of powerful electromagnetic clutch, prevent the second time cutting.
4.
98 sets memory, setting while cutting
5.
Engage method: operate with two hands.
6.
High rigidity forceful cylinder
7.
Two set of safety sensor
8.
Ball-Bearing-bar + Linear-Bearing-bar (Optional)
9.
Air delivery device.
10.
Chrome platform.
11.
Safety belt for the working platform. (Optional)

Worm Wheel Box

Ball-Bearing-Bar

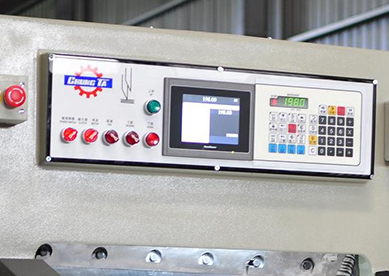

7" Touch Panel




Model SMC-66
size 26.4 INCH
Max. Cutting Thickness (m/m) 100
Table Height (m/m) 860
Machine Height (m/m) 1530
Max. Cutting Width (m/m) 660
Max. Cutting Length (m/m) 630
Machine Length (m/m) 1600
Machine Width (m/m) 1600
Weight (kg) 1200
Main motor (hp) 2
Clamp motor (hp) 1
Blower motor (hp) 1/2
Paper Feeding motor (hp) 1/2
