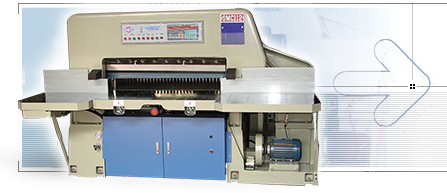

<< MICRO-COMPUTER HIGH-SPEED CUTTING MACHINE





Specification --SMC - 112


1.
Machine base is made of high strength casting structure.
It runs firmly and cuts precisely.
2.
Operate with worm wheel shaft.( Single-piece and forceful worm wheel box )

Worm Wheel Box

Ball-Bearing-Bar

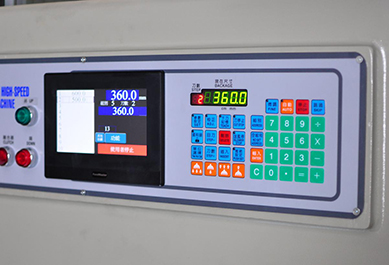

7" Touch Panel

3.
The special design of powerful electromagnetic clutch, prevent the second time cutting.
4.
98 sets memory, setting while cutting.
5.
Engage method: operate with two hands.
6.
High rigidity hidden forceful cylinder.
7.
Two set of safety sensor.
8.
Ball-Bearing-bar + Linear-Bearing-bar (Optional)
9.
Safety belt for the working platform.
10.
The transmission arm with safety screw device.
11.
Convenient hanging knife function when changing blades.
12.
Air delivery device.
13.
Optical crop marks.
14.
Chrome platform.
15.
Auto lubricant refilling system. (Optional)
16.
LCD control front-panel (Optional)



Spec. --SMC - 112

L2. Machine Length : 2400mm
H2. Machine Height : 1650mm
W2. Machine Width :2800mm
H1. Table Height : 860mm
H. Max. Cutting Thickness : 150mm
W3. Max. Cutting Width : 1150mm
L1. Front Table Length : 620mm

>> ( New style )MICRO-COMPUTER HIGH-SPEED CUTTING MACHINE--Spec.

Model

SMC-
112

SMC-135N

SMC-150

SMC-168



size :

45.6 INCH

54
INCH

60 INCH

67.2 INCH

H

Max. Cutting Thickness (m/m)

150/210

150/210

150/210

150

H1

Table Height (m/m)

860
860
860
860
H2

Machine Height (m/m)

1650
1650
1650
1650
W3

Max. Cutting Width (m/m)

1150
1360
1510

1680

L2

Machine Length (m/m)

2400
2550
2850

2850

W2

Machine Width (m/m)

2800
3020
3200
3400

Cutting Frequency ( times / min )

20-40
20-40
20-40
20-40

Weight (kg)

3300
3800
4300
4700

Main motor (hp)

3
5
5
5

Clamp motor (hp)

2
3
5
5

Blower motor (hp)

1/2
1
1
1

Paper Feeding motor (hp)

1/2
1
1
1
L1

Front Table Length (m/m)

620
620
620
620
