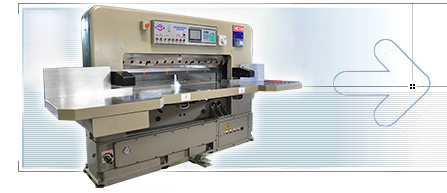

<< MICRO-COMPUTER HIGH-SPEED CUTTING MACHINE

Specification

1.

Machine base is made of high strength casting structure.
It runs firmly and cuts precisely.

2.

Operate with worm wheel shaft.( Single-piece and forceful worm wheel box )

Worm Wheel Box	Ball-Bearing-Bar
7" Touch Panel

3.

The special design of powerful electromagnetic clutch, prevent the second time cutting.

4.

98 sets memory, setting while cutting.

5.

Engage method: two hands / single hand---optional.

6.

Two sections high rigidity hidden forceful cylinder.

7.

Three set of safety sensor.

8.

Ball-Bearing-bar + Linear-Bearing-bar

9.

Optical crop marks.

10.

Safety belt for the working platform.

11.

Hanging knife function, convenient when changing blades.

12.

Air delivery device.

13.

Chrome platform.

14.

The transmission arm with safety screw device.

15.

LCD control front-panel (Optional)

Spec.--SMC - 136

	A.Machine Length: 2890mm B.Machine Height: 1650mm C.Machine Width: 2950mm D. Table Height: 855mm E.Max. Cutting Thickness: 160mm F. Max. Cutting Width: 1360mm G.Front Table Length: 620mm

>> (Luxury mode)MICRO-COMPUTER HIGH-SPEED CUTTING MACHINE--Specification
	Model:	SMC-115	SMC-136
	size:	45.6 INCH	54  INCH
E	Max. Cutting Thickness(m/m) :	160	160
D	Table Height(m/m) :	855	855
B	Machine Height(m/m) :	1650	1650
F	Max. Cutting Width(m/m)	1150	1360
A	Machine Length(m/m)	2600	2890
C	Machine Width(m/m) :	2700	2950
	Cutting Frequency(times/min)	38	38
	Weight(kg) :	3500	4300
	Main motor(hp)	5	5
	Clamp motor(hp)	2	3
	Blower motor(hp)	1/2	1
	Paper Feeding motor(hp)	1/2	1
G	Front Table Length	620mm	620mm
