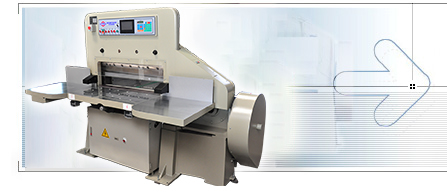

<< MICRO-COMPUTER HIGH SPEED CUTTING MACHINE NUMBER DISPLAY CUTTING MACHINE PP CUTTING MACHINE

Specification

1.

Machine base is made of high strength casting structure.
It runs firmly and cuts precisely.

2.

Operate with worm wheel shaft. ( Single-piece and forceful worm wheel box )

Worm Wheel Box	Ball-Bearing-Bar
7" Touch Panel

3.

The special design of powerful electromagnetic clutch, prevent the second time cutting.

4.

98 sets memory, setting while cutting. (Computer model)

5.

Engage method: operate with two hands.

6.

High rigidity forceful cylinder

7.

One or Two set of safety sensor.

8.

Ball-Bearing-bar + Linear-Bearing-bar (Optional)

9.

Safety belt for the working platform. (Optional)

10.

The transmission arm with safety screw device.

11.

Air delivery device.

12.

Chrome platform.

13.

Manual lubricant refilling system. (Optional)

14.

LCD control front-panel (Optional)

Spec.--SMC - 95

	A.Machine Length: 2200mm B.Machine Height: 1770mm C.Machine Width: 2490mm D. Table Height: 855mm E.Max. Cutting Thickness: 120mm F. Max. Cutting Width:940mm G.Front Table Length: 620mm

>> (Common mode)
MICRO-COMPUTER HIGH SPEED CUTTING MACHINE NUMBER DISPLAY CUTTING MACHINE PP CUTTING MACHINE --Spec.

	Model	SMC-95	SMC-111	SMC-135	SMC-260
	size	37.2 INCH	44.4 INCH	54 INCH	103.2 INCH
E	Max. Cutting Thickness (m/m)	120	120	120	120
D	Table Height (m/m)	855	855	855	855
B	Machine Height (m/m)	1770	1680	1680	1680
F	Max. Cutting Width (m/m)	940	1120	1360	2600
A	Machine Length (m/m)	2200	2450↑	2450↑	2450↑
C	Machine Width (m/m)	2490	2600	2920	4100
	Cutting Frequency ( times / min )	30	30	30	30
	Weight (kg)	1800	2100	2400	3800
	Main motor (hp)	2	2	3	5
	Clamp motor (hp)	2	2	2	3
	Blower motor (hp)	1/2	1/2	1/2	1
	Paper Feeding motor (hp)	1/2	1/2	1/2	1
G	Front Table Length	620	620	620	620
